Flagship product family · EPDM
One flagship family of coloured EPDM rubber granules, organised for product-range selection, particle-size specification, physical colour confirmation and qualified B2B supply enquiries.
Request Technical Documents
Product overview · 01
Premium / Eco and Coloured EPDM are range descriptions within one Chuangte EPDM Rubber Granules family. The required range, particle size, colour and order context are confirmed together for each enquiry.
Range / presentation
A named range within the single EPDM product family for enquiries that begin with a defined grade or composition requirement.
Confirm the required grade, composition requirement, particle size and supporting information for the order.Range / presentation

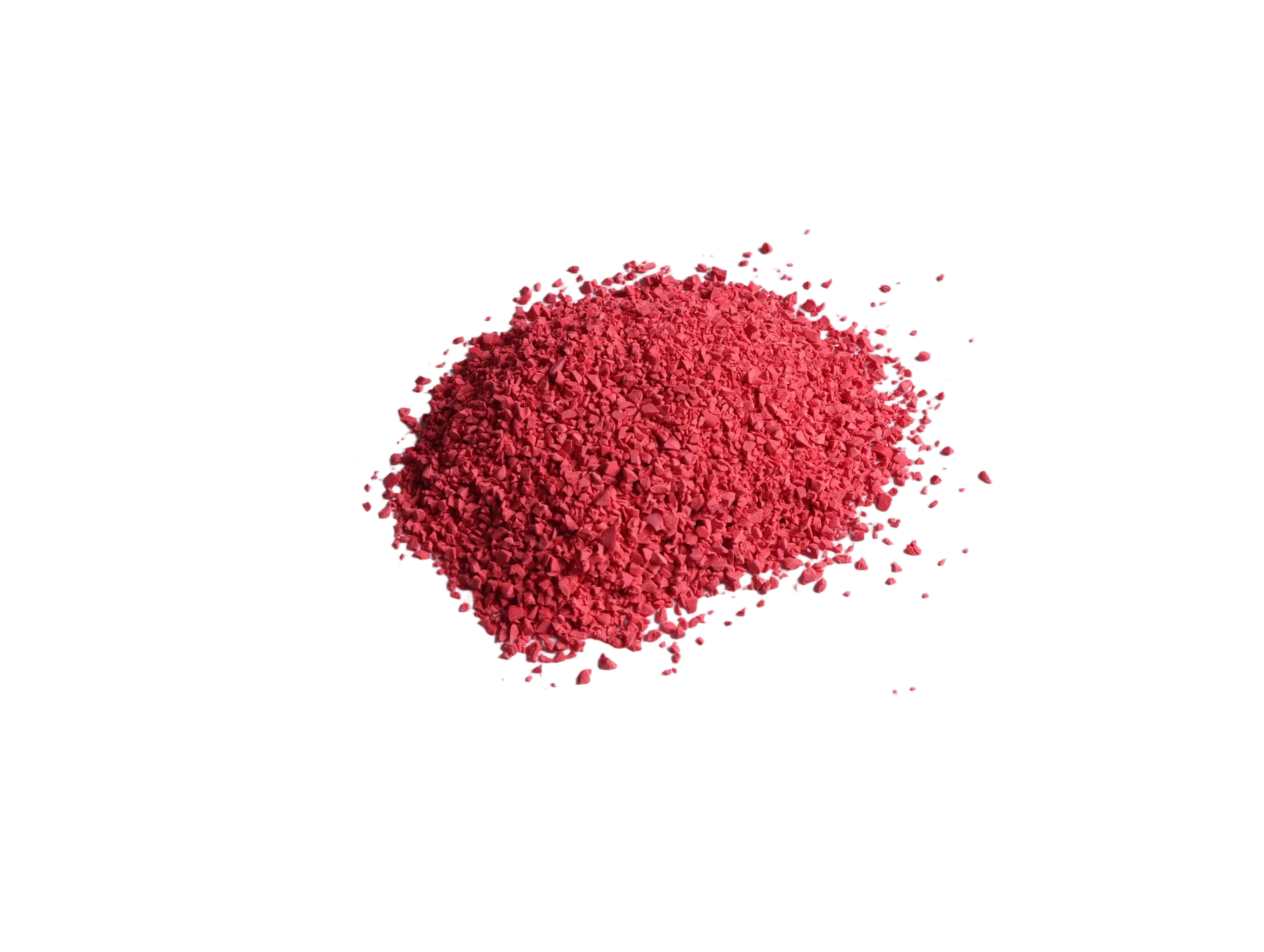

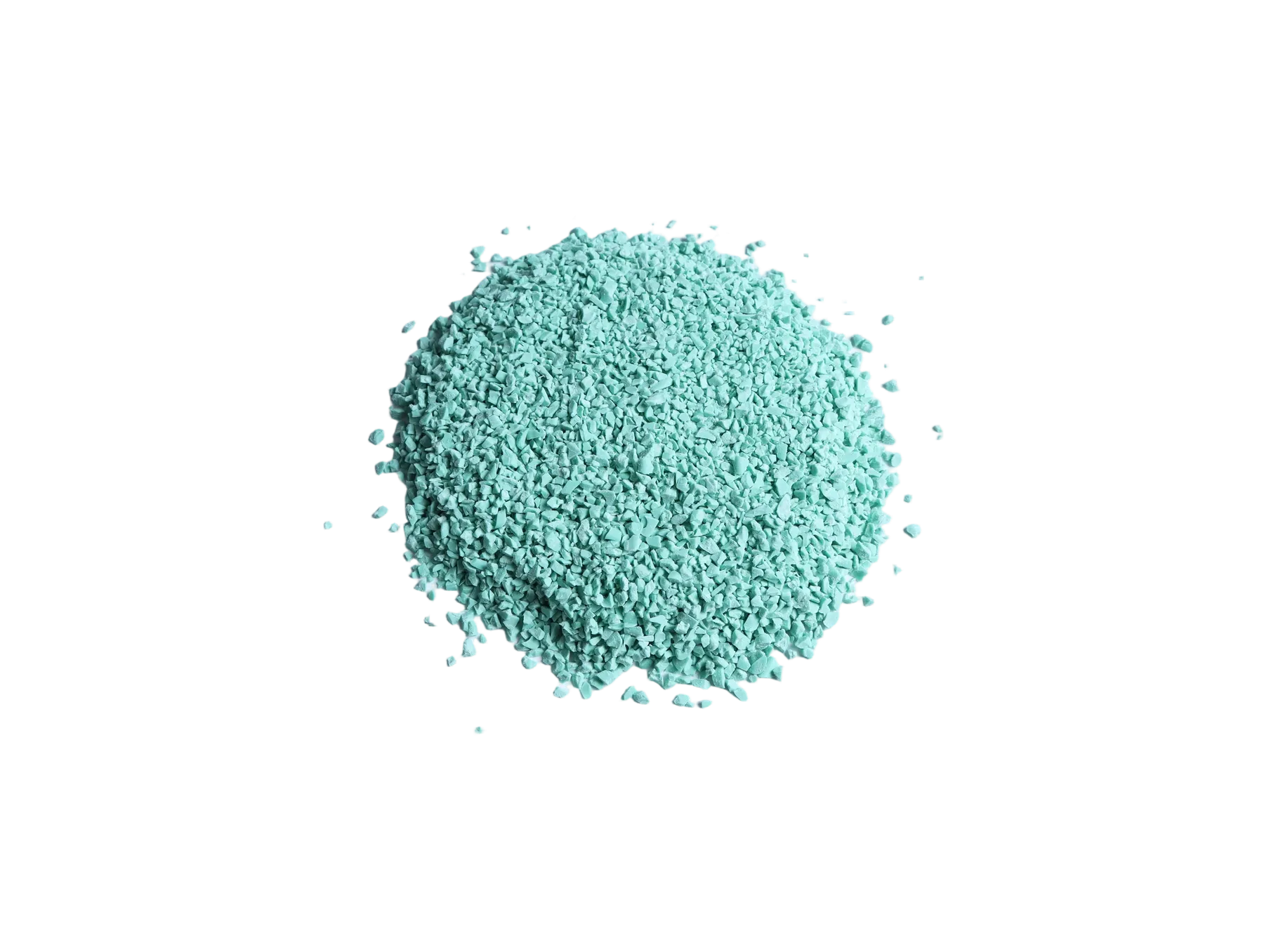

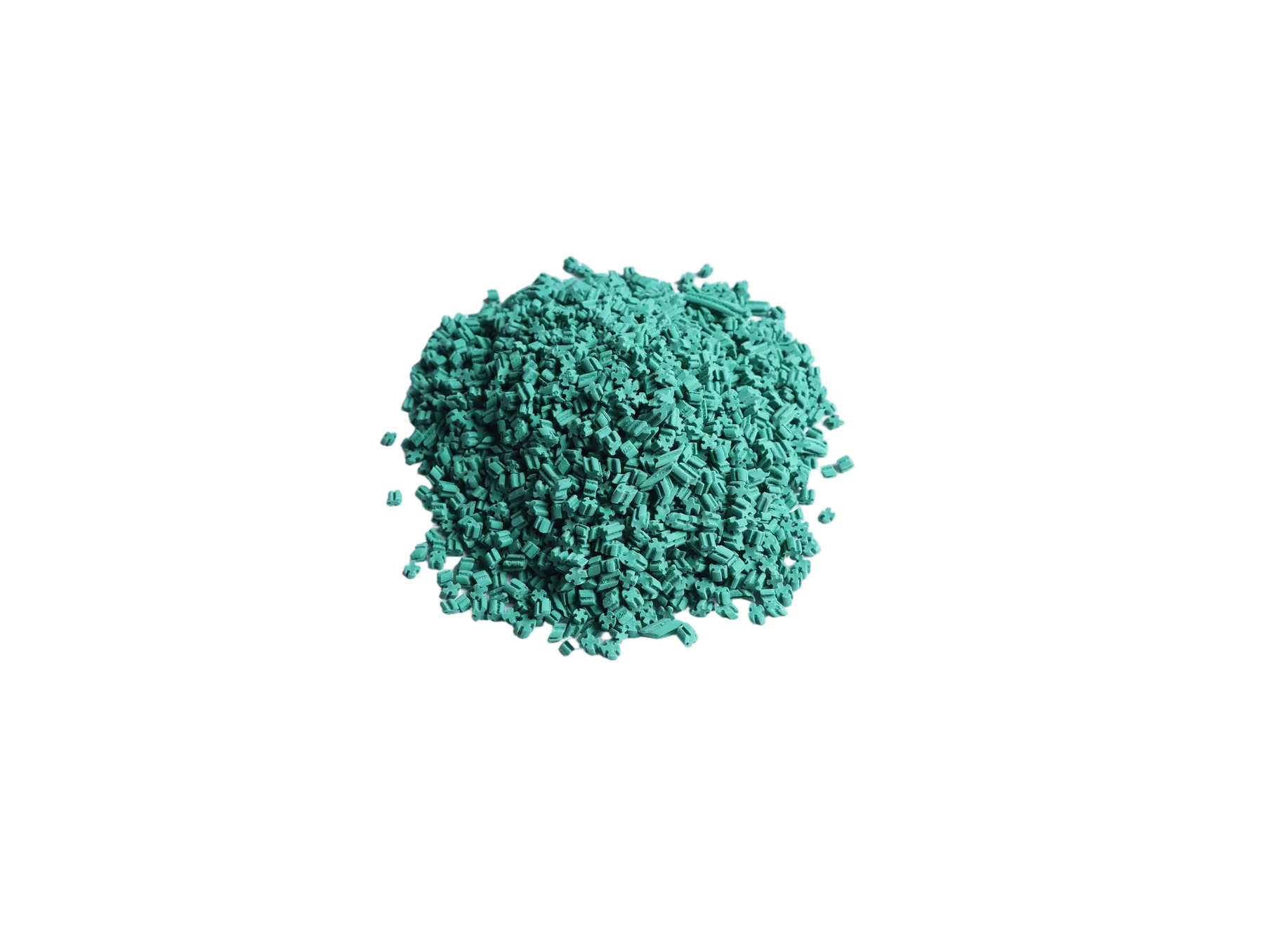

Coloured EPDM rubber granules selected by intended application, particle size and an agreed physical colour reference.
Confirm application, particle size, ACT or FH reference, quantity and destination. The Chuangte physical catalogue contains ACT-01 through ACT-81 references.Range / presentation
ACT colour families and FEIHONG physical sample presentations support the colour-selection conversation within the EPDM family.
Keep ACT and FH codes separate and approve the final colour through an agreed physical sample.Technical specifications · 02
Use these reference values to define the selected EPDM product. Grade-specific applicability and the current technical document are supplied for the product and order being evaluated.
Request Technical Documents| Specification | Published reference | Order qualifier |
|---|---|---|
| Material identity | Coloured EPDM rubber granules | Flagship product family |
| Range structure | Premium / Eco range · Coloured EPDM range | One EPDM family; confirm the required range |
| Rubber-content grades | 22% · 25% · 30% | Confirm the selected grade; no range-to-grade mapping is published |
| Particle sizes | 0.5–1.5 mm · 1–2 mm · 1–3 mm · 1–4 mm | Confirm the selected size for the grade and order |
| Bulk density | 650–680 g/L | Confirm applicability to the selected grade and current document |
| Tensile strength | ≥ 5.0 MPa | Confirm applicability to the selected grade and current document |
| Elongation at break | ≥ 500% | Confirm applicability to the selected grade and current document |
| Hardness | 60 ± 5 Shore A | Confirm applicability to the selected grade and current document |
| ACT physical colour references | ACT-01 through ACT-81 | Presented in six groupings; final colour confirmed by physical reference |
| Standard packaging reference | 25 kg woven bag | Confirm current packaging for the order |
| General MOQ reference | 1 metric ton | Confirm by range, colour and order type |
Colour & physical samples · 03
The Chuangte physical colour catalogue presents individual ACT-01 through ACT-81 references. Screen display, lighting and device settings can change colour appearance, so final production colour must be confirmed against an agreed physical material/reference.
Six physical-catalogue groupings
Performance & selection · 04
Low VOC, composition and outdoor-resistance attributes support the product selection. Applicable values and methods are supplied for the selected grade and application.
Product information identifies low VOC as an EPDM attribute. No universal numeric VOC value or test method is published; request the applicable information for the selected grade.
These product/composition attributes apply to the EPDM scope and are not claims about every Chuangte product category.
Relevant when reviewing EPDM for an outdoor surface context. Confirm applicable methods and project requirements; no guaranteed service life or colour-retention period is implied.
Controls the colour-selection step by replacing screen-only judgement with an agreed physical sample reference.
Applications · 05

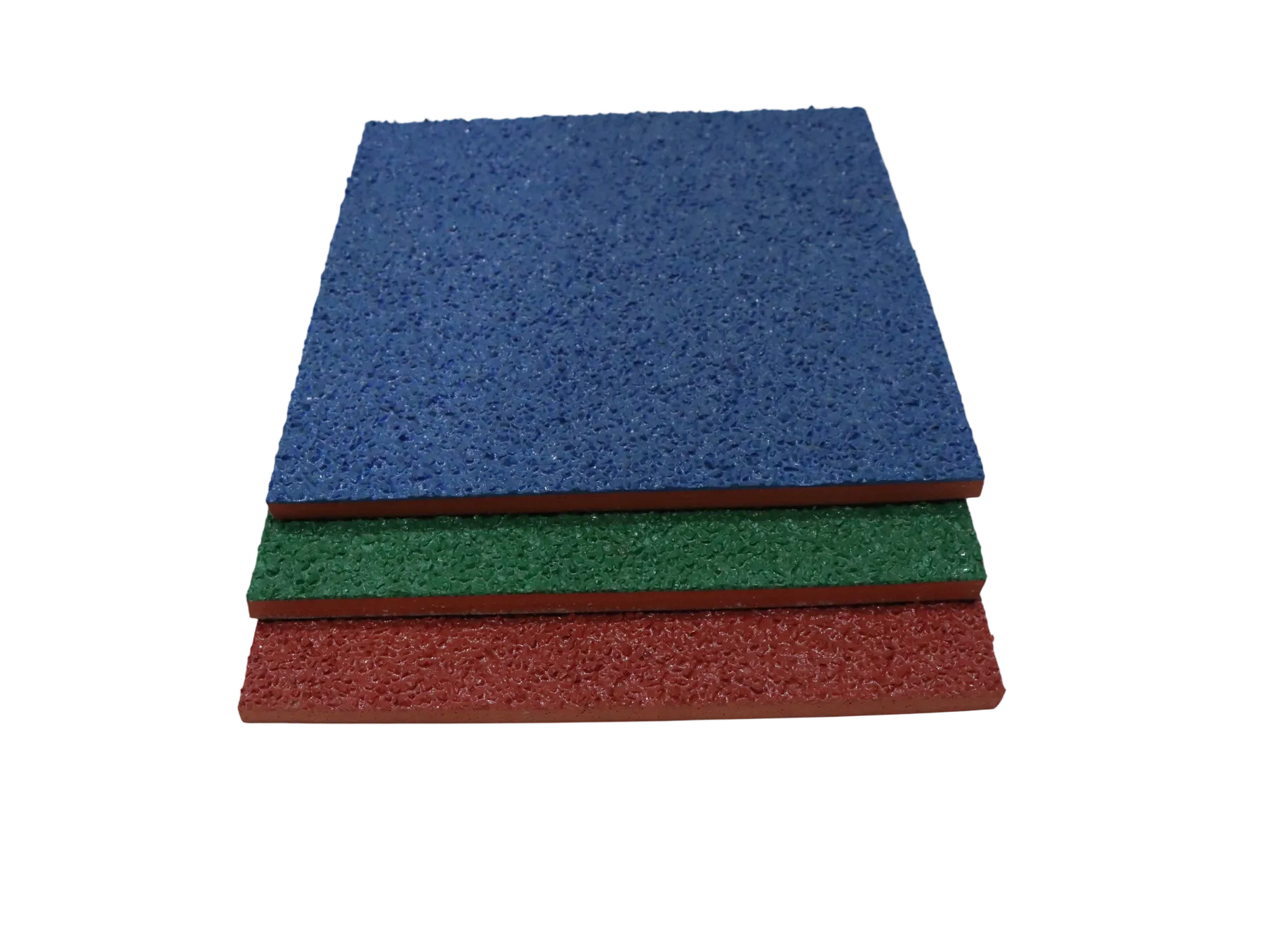

Coloured EPDM can be specified for running tracks, playgrounds and other resilient sports-surface applications. The complete surface build-up is defined for each project.
View ApplicationsColoured EPDM granules may form the visible surface material within running-track system requirements. Confirm the complete system specification separately.
Use physical colour and particle-size selection to review EPDM for playground and recreational surface requirements. Final system performance depends on the complete build-up.
EPDM can be evaluated as a coloured surface material for other resilient sports-surface contexts after the application and system requirement are defined.
Surface-system compatibility
Chuangte supplies EPDM Rubber Granules and PU Binder as separate product categories. Binder compatibility, formulation, layer build-up, substrate and installation requirements must be confirmed for the specific project.
Packaging & supply · 06
State the grade, colour, particle size, quantity, destination and schedule. Packaging, availability and applicable documents are then matched to the selected order.
Request a QuoteConfirm the current bag and order-preparation requirement.
Confirm by range, colour and order type.
Provide the range or colour reference, application and destination; confirm fee, freight and fulfilment details for the request.
Standard stock orders only; subject to current availability and order confirmation.
Include in the enquiry
Technical documents · 07
State the EPDM range, application, specification and destination so the relevant product, test, compliance, colour and supply information can be prepared.
EPDM buyer questions · 08
Use these answers to prepare the range, colour, specification, sample, packaging and document details for the enquiry.
Provide the intended application, EPDM range or grade requirement, particle size, ACT or FH colour reference, quantity, destination, packaging requirement, requested schedule and required documents.
The published standard sizes are 0.5–1.5 mm, 1–2 mm, 1–3 mm and 1–4 mm. Confirm the required size for the selected grade and order.
The Chuangte physical catalogue presents ACT-01 through ACT-81. Identify the ACT or FH reference system and code, then confirm final production colour against an agreed physical material/reference. Screen colour is not the final approval reference.
Yes. Submit the EPDM product, colour or range reference, intended application and destination so the relevant physical-sample request can be reviewed.
The recorded standard packaging reference is a 25 kg woven bag and the general MOQ reference is 1 metric ton. Confirm both for the selected range, colour and order type.
Relevant SGS, REACH, RoHS and EN1177 supporting documentation can be requested according to the selected product and qualification requirement. Product, specification, colour and packaging information can also be requested.
The reference is 7–10 working days for standard stock orders. Current availability and the actual schedule must be confirmed for each order; this reference does not apply automatically to custom or production orders.
PU Binder is a separate Chuangte product category relevant to rubber-surface system discussions. Compatibility and the full installation specification must be confirmed for the project.
EPDM procurement
Include the application, particle size, physical colour reference, quantity, destination, packaging and document requirement.
